5800 Piezo Jet Valve: High-Speed Precision Dispensing Solution

Name: 5800 Precision Micro Piezoelectric Jet Dispensing Valve
Brand: JHIMS
SKU: 5800
Price: 360 USD
Availability: InStock
Rating: 4.9 (36 reviews)

Product Number：5800 Piezoelectric valve

Product Usage：Non-contact dispensing mode

Applicable Industries：Epoxy adhesive UV adhesive Hot melt adhesive Thermosetting adhesive Silicone adhesive Corrosive adhesive solution Flux Red adhesive Silver adhesive Ink

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

5800 Piezo Jet Valve: High-Speed Precision Dispensing Solution

The JHIMS 5800 piezo jet valve transforms non-contact fluid handling in precision industries. Designed for high-viscosity hot melt adhesives, it provides rapid 1000Hz jetting, ultra-small 2nl dots, and ±3% accuracy, cutting setup time and boosting efficiency over contact methods. Its piezo mechanism avoids wear, delivering reliable performance for high-volume production.

Key Features of the High Speed Piezo Valve

Fast calibration skips traditional debugging for quicker starts.
Up to 1000Hz frequency for demanding lines.
Minimum 2nl/dot volume with ±3% precision.
Modular design simplifies maintenance and upgrades.
Ultra-fine dots and lines with consistent repeatability.
Built-in temperature adjustment for fluid optimization.
RS232/Ethernet support for software-driven controls.

Technical Specifications

Piezoelectric Valve Parameters

Parameter	Value	Advantage
Dispensing Method	Non-contact	No wear/contamination
Liquid Types	Hot melt adhesive	Viscous fluid optimized
Viscosity	5000-200000 cps	Broad range
Frequency	Max 800Hz	2x pneumatic speed
Mass	550g	Light integration
Dimensions	131x53x250 mm	Compact
Driving Voltage	100%	Consistent power
Min Dot Diameter	0.2mm	Micro apps
Min Line Width	0.25mm	Fine detail
Liquid Contact Materials	Stainless steel	Corrosion resistant
Inlet	Luer joint	Compatible
Pin Material	Tungsten/ceramics/diamond	Durable
Nozzle Material	Tungsten/ceramics/diamond	Wear resistant
Pin Models	0.5-2.0 diameter	Flexible
Nozzle Models	5-0.03mm to 5-0.5mm; extended 5-0.05-L4 to 5-0.3-L5.75	Versatile
Seal Ring	PEEK/fluororubber	High temp/corrosion
Seal Cycle	20M times	Low maintenance
Glue Pressure	0.05-0.5 MPa	Efficient
Cooling Pressure	0.03-0.06 MPa	Temp stability
Heating Cable	2.5/5m flexible	Install flexibility
Heating Type	24V, PT100, 70W	Precise control
Heating Limit	200°C	Safe hot melt
Cylinder Type	30ml cartridges	Standard
Flow Heater Cable	2.5/5m flexible	Reach
Flow Heater Type	24V, PT100, 60W	Efficient
Flow Heating Limit	235°C	High temp
Controller Cable	2.5/5m flexible set	Reliable
Recommended: 250-400Hz, 75-95% voltage

Controller Parameters

Parameter	Value	Advantage
Control Method	Electronic	Digital precision
Time Circuit	Digital	Repeatable
Power Input	AC220V 50-60Hz	Universal
Power	300W	Efficient
Quality	1.66Kg	Portable
Control Method	24V pulse/short-circuit	Integrable
Dimensions	231.4x123x134 mm	Compact
Display	Medical touchscreen	User-friendly
Interface	RS232/Ethernet	Connected
Performance 1	Counting functions	Predictive
Performance 2	485 comms	Accurate data
Button	Touchscreen	Durable
Trigger	Test/on-off	Flexible
Mode	Line/single/follow	Versatile
Open Time Min	0.1ms	Fast
Close Time Min	0.1ms	Precise
Rising Time Min	0.1ms	Quick
Descent Time Min	0.08ms	Optimized
Replacement Cycle	18 months/500M	Reliable

Industry Use Cases for Non-Contact Piezo Jet Valve

Optimized for precision:

Electronics: SMT/PCB underfill, no component damage.
Automotive: Sensor sealing for durability.
Medical: Implant assembly with hygiene.
LED: Phosphor dots for uniformity.
Consumer: Bonding in devices.

Comparison: JHIMS 5800 vs. Competitors

Feature	JHIMS 5800	Pneumatic (Nordson)	Piezo (MEST F910)
Max Frequency	1000Hz	500Hz	800Hz
Min Volume	2nl/dot	5nl/dot	3nl/dot
Accuracy	±3%	±5%	±4%
Viscosity	5000-200000 cps	1000-100000 cps	0-380000 cps
Seal Cycle	20M	10M	15M
Heating	235°C	200°C	220°C
Advantage	Touchscreen + counting	Cost	Vacuum integration

Why Choose JHIMS 5800 Micro Piezo Valve?

Outperforms with modular innovation, longer cycles, and integrated controls—reducing costs vs. Nordson/MEST alternatives.

Dimensions

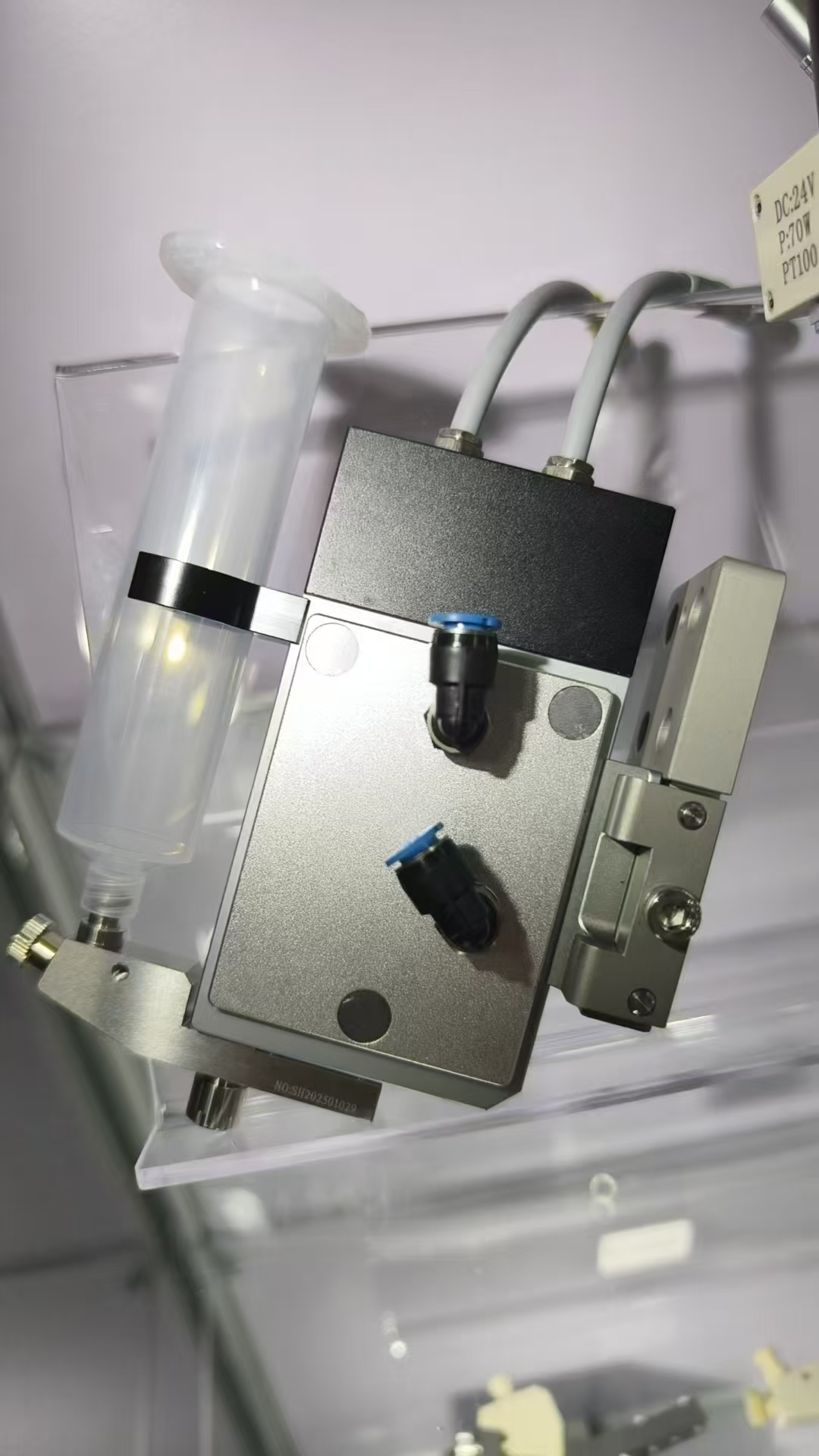

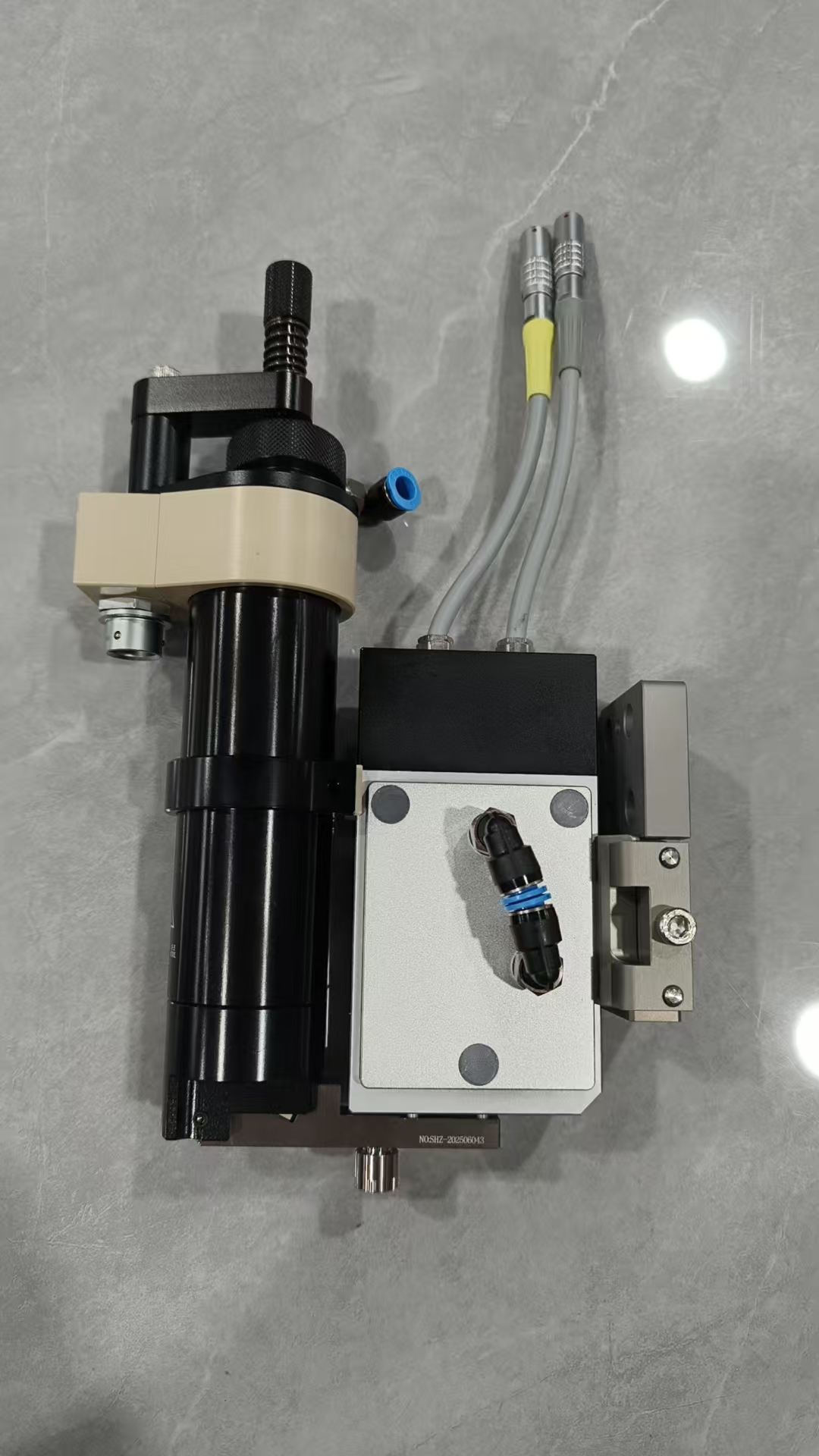

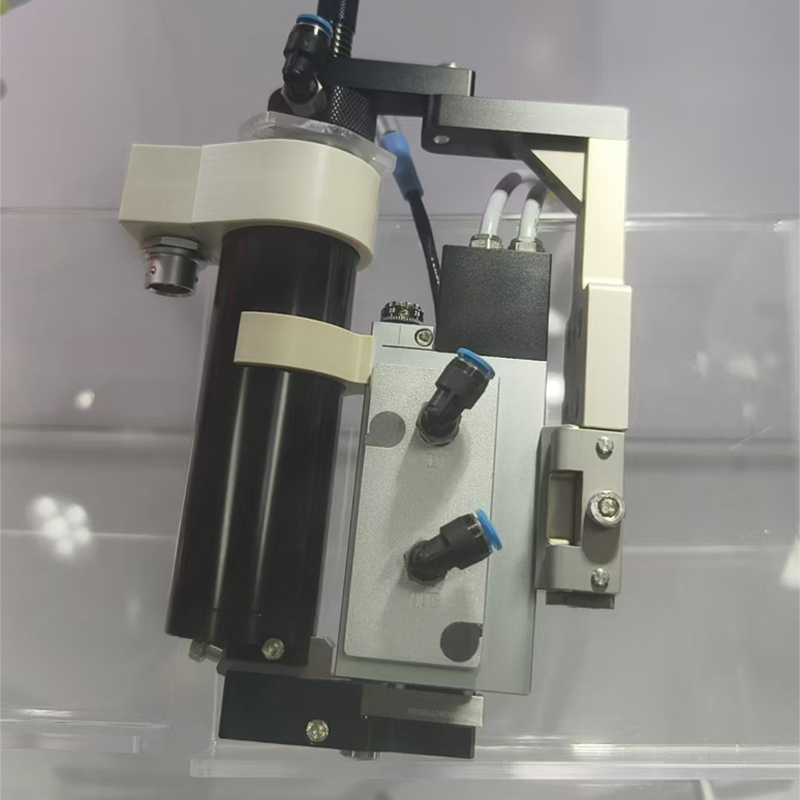

JHIMS 5800 piezo jet valve high-speed dispensing view Extended features of JHIMS 5800 piezo jet valve

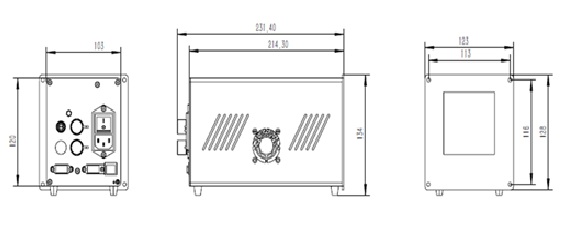

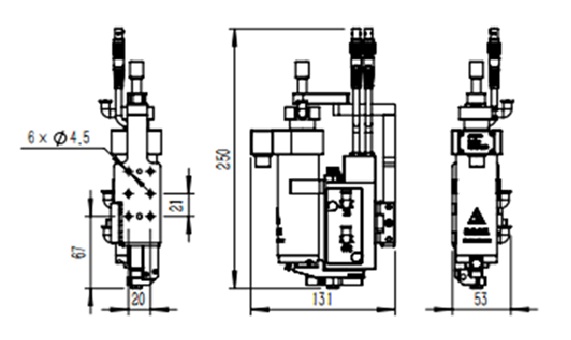

Micro piezoelectric valve body dimensions diagram Piezoelectric valve controller dimensions overview

FAQs

What is a piezo jet valve?: Uses piezo tech for non-contact high-speed dispensing of adhesives.
Viscosity range?: 5000-200000 cps.
Vs. pneumatic?: Faster, more precise, no air issues.
Maintenance?: 20M cycles seals; 18 months/500M valve.
Integration?: RS232/Ethernet yes.
Industries?: Electronics, auto, medical, LED.
Accuracy?: ±3%.
Temperature?: Up to 235°C.

Get the 5800 Today

Contact for Quote or Download Manual.
