APJ1000 Piezo Jet Valve - High-Speed Non-Contact Dispensing
The APJ1000 is an advanced piezo jet valve designed for non-contact, high-speed dispensing of adhesives like surface mount glues, conductive pastes, and underfills. With 500Hz operation and 0.01mg precision, it excels in tight spaces, delivering efficiency in electronics and beyond. Integrate with AU Series automated dispensing platforms for optimal results.

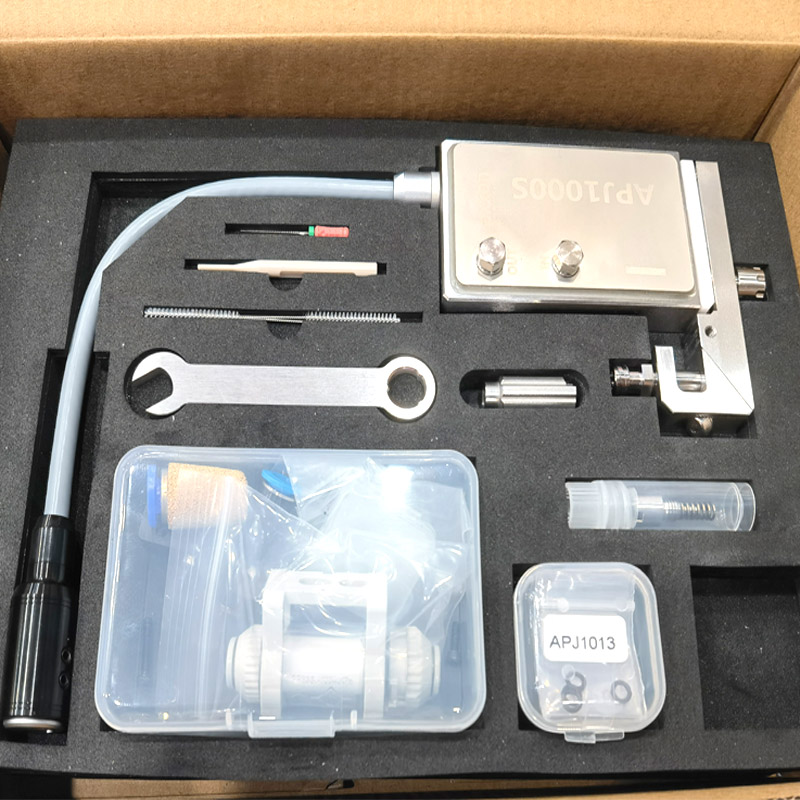

Key Features of the Piezoelectric Jet Dispensing Valve
- 500Hz maximum frequency for high-speed piezo jet valve performance
- Non-contact design prevents substrate damage
- 0.01mg precision and 0.2mm minimum dot size
- Viscosity range: 1-200,000 cps
- Hot melt capability up to 145°C
- Compact and lightweight at 390g

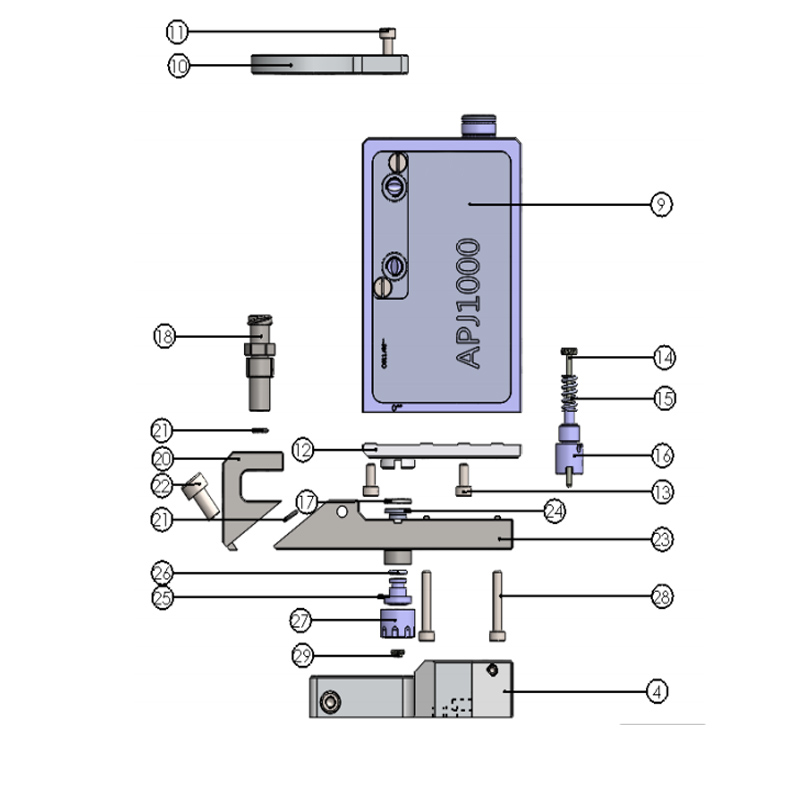

Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating frequency | 500 cycles/s |
| Optimal feed pressure | 0-0.3 MPa |
| Minimum point diameter | 0.2 mm |
| Optimal viscosity range | 1-200,000 cps |
| External dimensions | 99 mm × 78 mm × 12 mm |
| Weight | 390 g |
| Feeding components | Stainless steel Luer connector |
| Syringe specifications | 3CC, 5CC, 10CC, 30CC, 55CC |
| Available pipe specifications | 4-point pipe |
| Piezoelectric packaged module | Stainless steel |
| Flow channel module | Stainless steel |
| Firing pin | Special high-strength materials |
| Nozzle | Special high-strength materials |
| Fluid seal ring | High wear-resistant materials |
| Other O-rings | Nitrile rubber |
| Heating block | AL oxidation |
| Heating element | 24V (DC) 30W |
| Maximum heating temperature | 100℃/135℃/145℃ |
*Note: Performance varies by fluid; test for your application.
Applications for Non-Contact Jet Dispensing Valve
From SMT to medical devices, the APJ1000 piezo jet valve handles precision tasks. See how it integrates with AU Series platforms.
Comparison: Piezo Jet Valve vs. Pneumatic Valves
| Feature | APJ1000 Piezo Jet Valve | Typical Pneumatic Valve |
|---|---|---|
| Speed | Up to 500Hz | Up to 250Hz |
| Precision | 0.01mg | 0.1mg |
| Contact | Non-contact | Contact required |
| Maintenance | Low | High (air fluctuations) |
| Viscosity Range | 1-200,000 cps | Limited to low-medium |
Industry Use Cases
Electronics Packaging: In SMT assembly, the APJ1000 delivers underfill in microns-wide gaps, reducing defects by 30% vs. traditional methods.
LED Lighting: Precise sealant application ensures uniform coating, boosting production speed.
Life Sciences: For medical devices, non-contact jetting maintains sterility while achieving micro-doses.
Frequently Asked Questions
What is a piezo jet valve?
A piezo jet valve uses piezoelectric actuation for non-contact, high-speed fluid dispensing with exceptional precision.
What viscosity range does the APJ1000 support?
The APJ1000 handles 1 to 200,000 cps, suitable for cold and hot melt adhesives.
How fast is the APJ1000 piezo jet valve?
It operates at up to 500 cycles per second for high-speed production.
What applications is the APJ1000 suitable for?
Electronics packaging, SMT assembly, LED lighting, automotive sensors, and medical devices.
Can the APJ1000 handle hot melt adhesives?
Yes, with the D-170M hot melt module, supporting temperatures up to 145°C.
How precise is the dispensing?
It achieves 0.01mg precision and 0.2mm minimum dot diameter.
Downloads
Download the APJ1000 User Manual for detailed setup guides.
Get Started Today
Ready for precision piezoelectric jet dispensing valve 0.01mg? Request a Quote or click below.
