High Precision PCB Depaneling Machine | CNC Router - JHIMS

Name: JHIMS Q350 High Precision PCB Depaneling Machine
Brand: JHIMS
SKU: Q350
Price: 4600 USD
Availability: InStock
Rating: 4.9 (36 reviews)

Product Number：Q350

Product Usage：Product Usage of V-Cutting Machine The V-Cutting Machine is designed for precise separation of V-scored printed circuit boards (PCBs) after the SMT assembly process. It ensures clean, efficient, and low-stress PCB depaneling while protecting sensitive electronic components from damage.

Applicable Industries：Applicable Industries for V-Cutting Machine The V-Cutting Machine is widely used in industries requiring precise PCB depaneling and high-volume electronics production. Industries Served Consumer Electronics, Automotive Electronics ,LED Industry, Telecommunications, Industrial Automation, Medical Electronics ,Aerospace & Defense, Power Electronics

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

High Precision PCB Depaneling Machine with Full Vision CCD & CNC Router System

JHIMS Q350 – Advanced Curve Board Splitter for SMT Production Lines

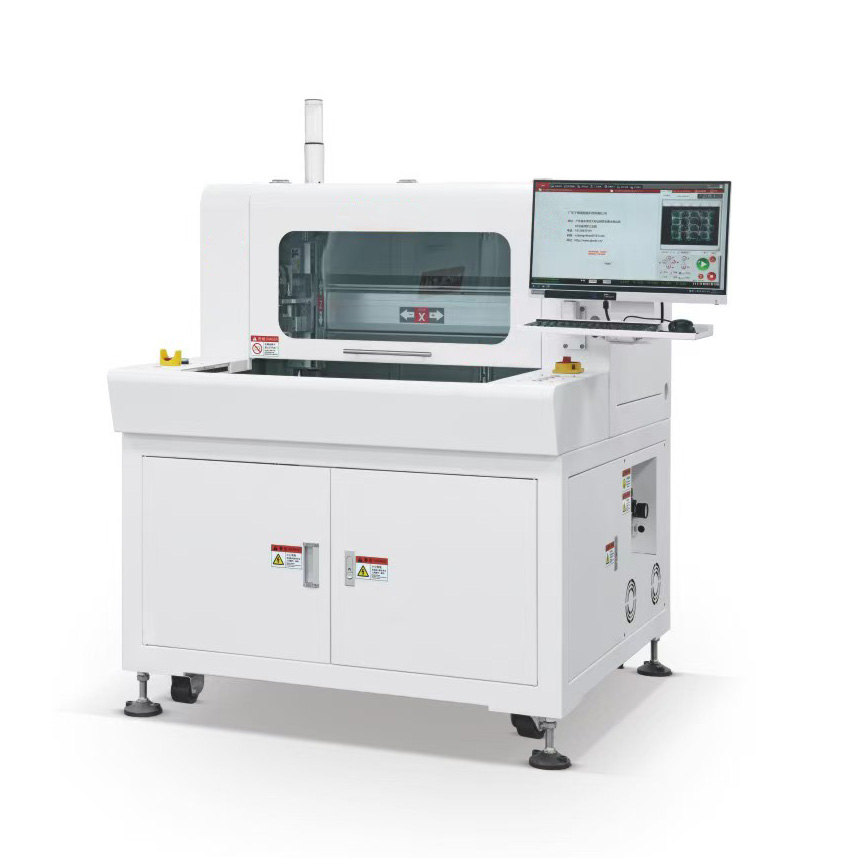

JHIMS Q350 high precision PCB depaneling machine with CCD vision system performing complex curve cutting on SMT boards

Request Instant Quote →

Advanced PCB Depaneling Solution for Modern Electronics Manufacturing

The JHIMS Q350 PCB Depaneling Machine is a full-vision intelligent CNC router designed for low-stress separation of complex PCBs. It delivers ±0.01mm repeatability and handles straight lines, arcs, circles, and any custom shape with ease. Perfect for high-mix SMT production environments.

Key Features of JHIMS PCB Router Depaneling Machine

Intuitive CCD Vision Programming: Draw straight lines, arcs, and circles directly on the board image, greatly reducing programming time.
Dual Y-Axis Workstations: Cut one product while loading another for maximum productivity.
High-Speed Precision Spindle: Up to 60,000 RPM with automatic tool break detection.
Low Mechanical Stress: Protects sensitive SMT components during depaneling.
Industrial Reliability: Hechuan servo motors, BOTAI guide rails, Hikvision high-speed camera.
Safety & Maintenance: Safety grating, static eliminator, and easy maintenance design.

Technical Specifications – JHIMS Q350 PCB Depaneling Machine

Parameter	Specification
Effective Cutting Size	340 × 360 mm
Cutting Function	Lines, Points, Arcs, Circles, Any Complex Curves
Processing Table	Double Countertop (Dual Y-Axis)
Cutting Accuracy	±0.05 mm
Repeat Positioning Accuracy	±0.01 mm
Maximum Movement Speed	X, Y1, Y2: 1000 mm/s, Z: 800 mm/s
Spindle	Domestic high-speed spindle (Up to 60,000 RPM)
Module / Guide Rail	BOTAI
CCD Camera	Hikvision high-speed camera
Electrostatic Treatment	Static eliminator (high frequency ion nozzle)
Tool Change Mode	Manual
Spindle Speed	Max 60,000 RPM
Tool Monitoring	Automatic tool sinking & break detection
Cutting Speed	5 – 100 mm/s (adjustable)
PCB Thickness	0.3 – 3.0 mm
Program Teaching Method	Whole board puzzle, picture drawing line teaching
Control Method	PC precision four-axis control system (WIN10)
X, Y1, Y2, Z Drive	Domestic Hechuan servo drive
Applicable Milling Cutter Size	0.8 – 3.0 mm
Host Power	AC220V 50/60Hz single phase
Machine Size	L1180mm × W1180mm × H1450mm
Machine Weight	500 kg
Dust Collector Power	3HP, AC380V three-phase

PCB Depaneling Methods Comparison

Feature	JHIMS Router	Traditional V-Cut	Laser Depaneling
Shape Flexibility	Excellent (Any Curve/Shape)	Straight Lines Only	Good
Component Stress	Very Low	Medium	Lowest
Throughput	High (Dual Workstation)	Medium	Medium
Initial Cost	Medium	Low	High
Maintenance Cost	Medium	Low	High

Applications

SMT Assembly Lines
Automotive Electronics
LED Lighting Modules
Medical Device PCBs
Telecommunication & 5G Equipment
Industrial Control Systems
Consumer Electronics Manufacturing

Why Choose JHIMS?

20+ Years of Manufacturing Experience
CE Compliant & Exported Worldwide
Professional Engineering Support
OEM & ODM Available
Global Customer Service

Frequently Asked Questions

What is the main difference between this machine and traditional V-Cutting Machines?

This is a full-vision CNC router depaneling machine that can handle complex curves and arbitrary shapes, while traditional V-Cut machines are limited to straight pre-scored lines.

Can the JHIMS Q350 be integrated into existing SMT production lines?

Yes, it is specifically designed for seamless integration into automated SMT lines.

What industries use this PCB Depaneling Machine?

Electronics manufacturing, automotive, LED, medical, telecommunications, and industrial automation.
