JHIMS Reflow Soldering Machine: Complete Installation & Setup Tutorial
Master your SMT production line with our 5-part video series covering 380V wiring, safety, and software setup.

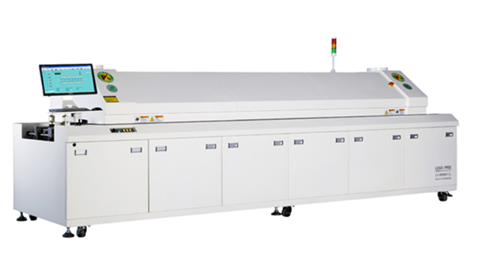

The JHIMS 8-Zone Reflow Soldering Machine is engineered for high-precision, lead-free SMT production. This comprehensive guide ensures your technical team can safely install, wire, and calibrate the oven for optimal thermal profiling.
Technical Specifications
| Feature | Technical Details |
|---|---|
| Heating Zones | 8 Upper + 8 Lower Independent Zones |
| Power Requirement | 380V 3-phase (Industrial Standard) |
| Conveyor Speed | 0.3–1.8 m/min (Inverter Adjustable) |
Full Video Tutorial Series – Step-by-Step Guidance
Part 1: Basic Installation, Physical Setup & Initial Power Wiring
Focus: Positioning, leveling with a spirit level, and detailed 380V power cord connection (R/S/T/N/Gnd).
Part 2: Detailed Power, UPS Wiring & Computer Host Connections
Focus: Standardized power cord labeling, UPS signal order, and PC host setup for software control.
Part 3: Safety Support Rod, Software Basics & Parameter Settings
Focus: Installing the safety support rod, navigating JHIMS software, and furnace temperature testing.
Part 4: Advanced Software Operation & Solder Paste Thermal Profiles
Focus: Managing thermal profiles for lead-free, leaded, and red glue solder pastes.
Part 5: Hardware Overview, Diagnostics & Final Safety Checks
Focus: Maintenance records, PLC I/O testing, and long-term hardware stability checks.
Critical Operational Safety Guidelines
- 380V Power: Must be wired by a licensed industrial electrician only.
- Hinge Cover: Always install the mechanical safety support rod before working inside.
- System Files: Never delete the “Default” calibration file in the software.
Frequently Asked Questions
Yes. Incorrect wiring can damage the PLC system and create severe safety hazards.
Absolutely. The 8-zone control allows for the high-temperature accuracy required for RoHS lead-free processes.
